Customized 2MP GC2053 Sensor IR-CUT HD MIPI Camera Module

Name: Customized 2MP GC2053 Sensor IRCUT HD MIPI Camera Module
Brand: Sinoseen
Price: 1 USD

Wholesale Customized 2MP GC2053 Sensor IR-CUT HD MIPI Camera Module from china suppliers

Brand Name : Sinoseen

Model Number : SNS21759-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 2MP camera module

Sensor : 1/2.9’GC2053 CMOS

Resolution : H1920*V1080

Dimensions : (customizable)

Pixel Size : 2.8um x2.8um

Focus Type : Fixed Focus

Interface : mipi

Feature : HD

Contact Now

Customized 2MP GC2053 CMOS Sensor HD mipi Camera Module

2MP MIPI Camera Module

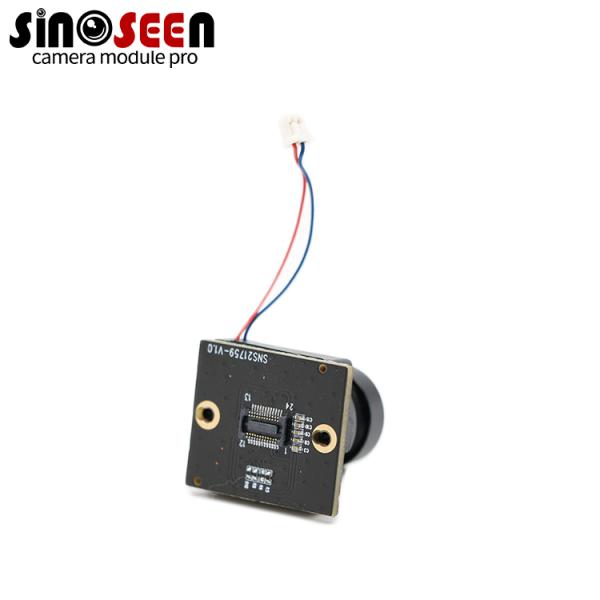

This 2MP HD MIPI Camera Module is a dedicated camera module using the GC2053 CMOS image sensor with a resolution of 2 megapixels (2MP).The camera module uses a GC2053 CMOS image sensor capable of capturing high-resolution 2-megapixel (2MP) images. Capable of capturing and outputting HD video or still images.The camera module integrates the MIPI camera serial interface, which is widely used in mobile devices and other applications. The MIPI interface provides high-speed data transfer and is commonly used in smartphones and tablets. The module uses a compact form factor, making it suitable for integration into various devices and applications.t.

Specification

Model No	SNS21759-V1.0
Sensor	1/2.9’GC2053 CMOS
Pixel	2 Mega Pixel
Most effective pixels	H1920*V1080
Pixel Size	2.8um x2.8um
Image Area	5808µm x 3288µm
Compression format	YUV2 / MJPG
Resolution	See above
Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	3700 mV/lux-sec
Interface type	MIPI
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Power supply requirement	AVDD28: 2.7~3.3V(Typ.2.8V)
	DVDD18: 1.15~1.3V(Typ.1.2V)
	IOVDD: 1.7~3.0V(Typ.1.8V)
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Storage temperature	0~60℃
Operating temperature	-20~80℃
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
