Customizable Dimensions USB Camera Module With 2.9um*2.9um Pixel Size For Fine Detail

Name: Customizable Dimensions USB Camera Module With 29um29um Pixel Size For Fine Detail
Brand: Sinoseen
Price: 1 USD

Wholesale Customizable Dimensions USB Camera Module With 2.9um*2.9um Pixel Size For Fine Detail from china suppliers

Brand Name : Sinoseen

Model Number : SNS-DZ1142-V1.0

Certification : RoHS

Place of Origin : China

MOQ : 5

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3week

Packaging Details : Tray+Anti-static bag in carton box

Sensor Size : 1/2.9

Color : Color

Gpu : Mali-T860

Sensor Model : MT9J003

Equipment Size : 42mm×40mm×10mm(±1mm)

Focal Length : 3.95mm

Lens Type : Fixed

Video Capture Resolution : 720P

Special Feature : Low Light

Feature : HDR

Chip Type : OV5648

Compatibility : Windows, Mac, Linux

Weight : 50g

Object Distance : 1cm-infinite

Power Supply : USB

Input Voltage : 3-3.6V or 3.6-16V

Drive Mode : Free Diver

Video Format : MP4

Driving Method : Drive Free

Focus : Fixed Focus

Format : MJPG YUY2

Maximum Effective Pixel : 1920(H)X1080(V)

Keywords : IP Camera Module

Powered : DC12V/POE

Production Process : SMT(ROSH)

Module Size : 93.7*55.0(mm)

Operating Voltage : DC5V

Sensor Type : CMOS

Output Forma : MJPG/YUY2

View Angle : 77.7°±3°

Mounting Options : Clip, Tripod

Uvc Protocol : USB Video Class（UVC）

Operating Temperature : -10°C to 60°C

Most Effective Pixels : 3840(H) x 2160(V)

Stable Temperature : 0°C to 50°

Array Size : 4208x3120

Power Consumption : About 140mA

Acquisition Speed : 1/30 fps(E21W) 1/120fps(E21W1)

Dimensions : 50mm x 50mm x 20mm

Contact Now

The Sinoseen 1/2.8 CMOS image sensor delivers superior performance, supporting resolutions of up to 30 frames per second. This advanced CMOS sensor delivers superior image quality in both high resolution and low light environments, making it ideal for applications as diverse as video streaming, conferencing systems, surveillance, educational displays, industrial inspection, and ATMs. It supports still and motion image capture (JPG, BMP) and AVI video recording with high color fidelity and fine image detail. The USB2.0 interface enables plug and play, speeds up to 480M/S, and is compatible with multiple operating systems, including Windows XP, 7, 8, 10, Linux, and Wince.

Enhance your imaging system by choosing a Sinoseen 1/2.8 CMOS sensor to achieve superior performance in a variety of environments.

Specification

Signal		SNS-DZ1142-V1.0	REMARKS
Image Sensor Size(图像感光尺寸)		1/2.8”CMOS
Effective Pixels(有效像素)		1920*1080
Pixel size(像素点大小)		2.9um*2.9um
Optical distortion(畸变)		<-1%
Image sensor Data output(数据输出类型)		Raw Data 10bits
Video output(输出格式)		MPJG/YUV
Maximum Frame Rates(分辨率和帧率)		19201080 30FPS 1280960 30FPS 1280720 30FPS 1024768 30FPS 800600 30FPS 640480 30FPS 320*240 30FPS	MJPG
SNR max(信噪比)		TBD
Dynamic range(动态范围)		TBD
Min. Illumination(最低照度)		TBD
Digital interface(连接接口)		5pin 1.25mm USB2.0	线长1.5米
Transfer rates(接口速度)		480MB/S
Power requirements(电源)		5V±5%
Storage temperature储藏温度		-20℃to70℃
operating temperature 工作温度		-30℃to70℃
Power Consumption (功率)	NO LED	/
	IR-LED	/
PCB printig ink		black
OS(支持系统)		Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC )
Lens view (默认镜头)		M12*P0.5	LENS
Lens Construction 镜头结构		4G
F/NO光圈		2.0±5%
EFL 有效焦距		3.0 mm±5%
FOV 角度		D:96°±3°
对焦方式		手动
拍摄距离		60cm-∞

Customizable Dimensions USB Camera Module With 2.9um*2.9um Pixel Size For Fine Detail

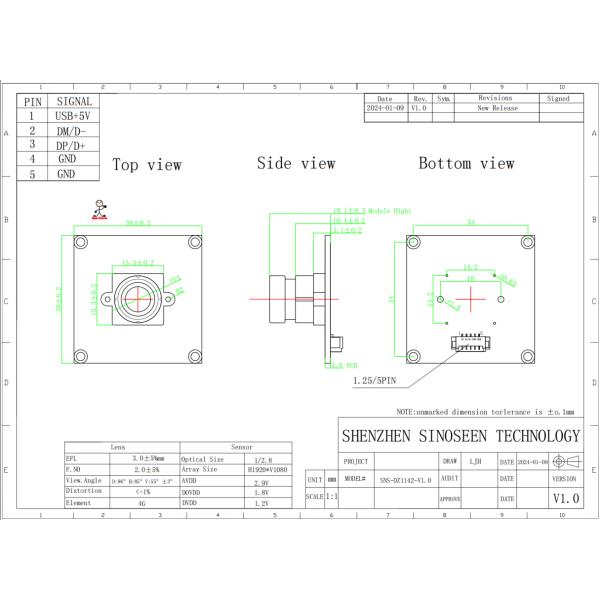

Customizable Dimensions USB Camera Module With 2.9um*2.9um Pixel Size For Fine Detail Images
